Long rectangular neodymium magnets fit tool first, then bar-geometry sourcing decision report.
This route targets teams that need quick fit output for long rectangular NdFeB bars and deeper confidence in geometry, coating, and thermal assumptions. Run the tool first, then validate boundary controls, risk mitigations, and fallback actions before RFQ lock.
1) Long rectangular neodymium magnets fit tool (primary interaction layer)
Input duty conditions and sourcing constraints for long rectangular neodymium magnets. The tool returns fit classification, route recommendation, boundary notes, and actionable next steps.
No result yet
Run the tool to generate fit classification, grade window, and RFQ action path.
The output includes suitability boundaries and a fallback route when NdFeB is not a safe primary lane.
Reference run for long rectangular neodymium magnets: actuator rail program with 120 x 20 x 5 mm bars, washdown exposure, and a fixed 2026-Q3 SOP window.
- Target flux density: 860 mT
- Max operating temp: 110C
- Peak temp: 136C
- Corrosion exposure: Humid + periodic alkaline cleaning
- Shape complexity: Long rectangular bar (high length-to-thickness ratio)
- Compliance lane: Industrial with shipment to mixed domestic/export plants
Observed output: Typical output is "Conditional fit": long-bar NdFeB remains feasible, but release is gated by prism-demag checks, magnetization-direction controls, coating thickness + adhesion verification, and one SH fallback lane.
Why this matters: This run translates long-rectangular keyword intent into measurable RFQ gates, reducing the chance that geometry or coating assumptions fail after pilot build.
2) Report summary (decision-ready conclusions)
These cards summarize the key decisions, core numbers, and applicability boundaries so teams can align quickly.
Run tool
Confidence is calculated after thermal/corrosion/shape penalties.
Pending result
Adjusted value includes environment, geometry, and compliance penalties before class mapping.
Pending result
Uses max(adjusted peak, adjusted operating + 8C) so sustained-duty risk is not hidden by transient-only checks.
28-53 MGOe
Source: [S11] plus supplier datasets; usable output still depends on load-line, geometry, and temperature.
35%-40% N-1 coverage
Source: [S4], 2035 shock scenario for graphite + rare earth elements. Use contingency lanes before RFQ freeze.
100% U.S. net reliance (2025)
Source: [S2] heavy rare earth chapter. High-temperature programs should disclose Dy/Tb exposure assumptions.
Edge/chip risk review required
Bar magnets with thin sections and sharp corners require handling, chamfer, and packaging controls before production lock.
ISO 2178 + ISO 1463 + ASTM B571
Long rectangular bars should pair lot-level thickness checks, local edge verification, and adhesion pass criteria before RFQ release.
- Engineering teams defining first-pass material lanes before RFQ.
- Procurement teams that need explicit evidence gates before supplier ranking.
- Programs balancing compact size requirements with thermal and corrosion boundaries.
- Teams expecting universal grade answers without duty-cycle evidence.
- Projects that cannot execute minimum thermal/corrosion validation.
- Cost-only sourcing workflows with no fallback lane definition.
2.5) Stage1b gap audit and information deltas
This audit captures where stage1-primary coverage was thin, what evidence was added in stage1b, and which items still need project-specific confirmation.
| Gap identified | Why it was weak | Stage1b information delta | Current state | Source ref |
|---|---|---|---|---|
| Air-shipment compliance blind spot | Stage1-primary emphasized material fit but did not include the package-level magnetic field threshold that can block aircraft carriage. | Added U.S. air-carriage threshold details, decision implications, and minimum logistics actions in key numbers, policy, and open-gap sections. | Closed for first-pass planning; shipment-level field measurement remains mandatory before booking. | [S19] |
| Consumer safety scope ambiguity | Earlier copy focused on industrial sourcing and did not define when consumer magnet safety rules override pure performance screening. | Added 16 CFR hazard criteria, injury context, and FAQ guidance for consumer-channel scope screening. | Closed for U.S. compliance framing; SKU-level exemption interpretation still requires legal/compliance review. | [S20][S21] |
| Recycling vs concentration tradeoff density | The page discussed concentration risk but lacked a concrete demand-versus-secondary-supply baseline for 2024. | Added IEA demand, secondary supply, and concentration figures plus an explicit inferred-ratio label (~30%). | Partially closed; refresh required with each new IEA data cycle. | [S22] |
| US trigger timing visibility | Policy timing focused mainly on EU lanes and omitted immediate U.S. shipment and consumer-rule triggers. | Extended policy matrix with U.S. transport and consumer-safety triggers, each mapped to executable minimum actions. | Closed as of 2026-02-19; monitor CFR updates for scope changes. | [S19][S20] |
| Long-edge coating controls were under-specified | Stage1-primary and shared neodymium stage1b content did not distinguish between lot-level coating thickness checks and local edge/corner verification for elongated bars. | Added ISO 2178 + ISO 1463 + ASTM B571 evidence chain and converted it into executable release gates (thickness + local section + adhesion pass criteria). | Closed as of 2026-02-25; keep coating acceptance criteria tied to media-specific validation plans. | [S53][S54][S55] |
| Test-method boundary between screening and release was unclear | Earlier copy did not explicitly separate open-circuit dipole screening from in-circuit demag qualification for long rectangular magnets. | Added IEC 60404-14 method boundary and linked it to demag/load-line release requirements to prevent dipole-only approvals. | Partially closed; supplier-specific in-circuit evidence is still mandatory before PO release. | [S52][S47] |
| Grade-envelope overconfidence in long-bar interchangeability | The page lacked a direct bridge between broad standard envelopes and orientation-sensitive long-bar output variation. | Added ASTM A1101 envelope context plus anisotropy counterexample signals to prevent grade-label-only supplier ranking. | Partially closed; no reliable public cross-supplier orientation-spread benchmark exists, so project-level mapping criteria remain required. | [S51][S50] |
Stage1b evidence refresh completed on 2026-02-25. Re-check prism-demag assumptions, orientation-map controls, and coating thickness/adhesion evidence closure at each quarterly compliance review.
3) Key numbers and scope boundaries
Numeric claims are disclosed with date markers. Unknown or uncertain items are explicitly labeled to avoid false certainty.
| Metric | Value | Date marker | Decision implication | Source ref |
|---|---|---|---|---|
| U.S. rare-earth concentrate output (REO) | 51,000 t and USD 240M | USGS MCS 2026 chapter, published 2026-02 | Shows domestic output scale but not full self-sufficiency for downstream NdFeB supply chains. | [S1] |
| U.S. imports of RE compounds/metals | +169% volume in 2025; value USD 165M vs USD 168M in 2024 | USGS MCS 2026 chapter, published 2026-02 | Procurement risk is driven by product mix and category shifts, not only by headline import value. | [S1] |
| World rare-earth production estimate | 390,000 t in 2025 | USGS MCS 2026 foreword (published 2026-02) | Global supply expanded, but growth does not remove concentration and policy-shock exposure. | [S3] |
| Heavy rare-earth net import reliance (U.S.) | 100% in 2025 (compounds and metals) | USGS MCS 2026 heavy rare earths chapter, published 2026-02 | High-temperature NdFeB lanes can inherit geopolitical and licensing risks through Dy/Tb exposure. | [S2] |
| Rare-earth demand change in STEPS | +50% to +60% by 2040 | IEA Global Critical Minerals Outlook 2025 | Even moderate scenario growth keeps pressure on magnet-material qualification and sourcing plans. | [S4] |
| China projected refining share (battery-grade graphite + rare earths) | Around 80% in 2035 | IEA Global Critical Minerals Outlook 2025 | Dual-lane sourcing should start before RFQ freeze for high-risk temperature classes. | [S4] |
| N-1 supply coverage for graphite + rare earths | Only 35% to 40% of N-1 demand in 2035 | IEA Global Critical Minerals Outlook 2025 | Single-country disruption can invalidate otherwise "balanced" supply assumptions. | [S4] |
| Salt spray as field-life predictor | Seldom correlates when used as stand-alone data | ASTM B117-26, last updated 2026-01-19 | Do not convert fog-test hours directly into service-life commitments without corroborating evidence. | [S10] |
| U.S. net import reliance (RE compounds/metals) | About 67% in 2025 (down from >90% in 2024) | USGS MCS 2026 Rare Earths chapter, published 2026-02 | Dependence improved versus 2024, but import exposure remains high enough to require dual-lane planning. | [S14] |
| U.S. apparent consumption (RE compounds/metals) | 27,000 t REO in 2025 vs 9,010 t in 2024 | USGS MCS 2026 Rare Earths chapter, published 2026-02 | Demand rebound can compress lead-time buffers if RFQ and validation gating are delayed. | [S14] |
| China share of U.S. RE imports by value | Average 71% (2021-2024) | USGS MCS 2026 Rare Earths chapter, published 2026-02 | Country concentration remains material for NdFeB programs even when domestic mine output increases. | [S14] |
| Rare-earth oxide price dispersion (2025, China market) | NdPr +25% ($55->69/kg), Tb +24% ($812->1,010/kg), Dy -7% ($257->239/kg) | USGS MCS 2026 Rare Earths + Heavy Rare Earths chapters | Do not treat heavy-RE exposure as one blended surcharge; element-specific terms are safer for contracts. | [S14][S15] |
| Chinese permanent-magnet exports | About 58,000 t in 2024 | IEA commentary on export controls, published 2025-12-04 | Short approval delays can rapidly affect downstream inventories when market dependence is high. | [S16] |
| EU strategic benchmark package (CRMA) | 2030 targets: 10% extraction, 40% processing, 25% recycling, <=65% single-country dependency | Regulation (EU) 2024/1252, effective 2024-05-23 | EU-facing RFQs should include origin traceability and recycling disclosure gates before final award. | [S12] |
| Air carriage magnetic-field limit (U.S.) | >0.00525 gauss at 4.5 m from any package surface is forbidden | FAA PackSafe page last updated 2023-03-15; eCFR current to 2026-03-19 | Technical fit alone does not guarantee ship readiness; package-field checks must be part of launch gating. | [S19] |
| U.S. consumer magnet hazard threshold | Hazard criteria include small-part fit plus flux index >=50 kG2 mm2; subject products must stay below 50 | 16 CFR part 1262 current text, accessed 2026-02-19 | Consumer-facing loose-magnet products need compliance screening before using catalog strength claims in go-to-market plans. | [S20] |
| U.S. high-powered magnet injury baseline | Estimated 26,600 emergency-department visits (2010-2021) and 7 reported deaths | 16 CFR part 1262 findings and CPSC final-rule release (2022) | If magnets can become loose parts, safety risk can dominate material-choice logic even when force targets are met. | [S20][S21] |
| Rare-earth demand vs secondary supply (2024, STEPS) | 91 kt demand vs 27 kt secondary supply (~30%, inferred) | IEA rare-earth data page, updated 2025-05-21 | Secondary supply helps but does not replace primary extraction and refining resilience planning. | [S22] |
| Top-three concentration (2024, STEPS) | Mining 86%; refining 97% | IEA rare-earth data page, updated 2025-05-21 | Supplier-count diversification can still mask concentration risk if upstream refining remains highly clustered. | [S22] |
| Rectangular-prism demagnetizing-factor model | Closed-form demagnetizing factors published for general rectangular prisms | J. Appl. Phys. 83(6), published 1998-03-15 | Bar-magnet load-line checks should use prism geometry factors instead of ellipsoid shortcuts. | [S46] |
| Permanent-magnet method envelope (ASTM A977) | Scope includes Hci about 8 kA/m to 2.8 MA/m and Br about 0.05 T to 2.0 T | ASTM A977/A977M-07(2020), active as of 2026-02 | RFQ comparisons should include method disclosure when suppliers publish bars near range boundaries. | [S47] |
| Sintered rare-earth corrosion test caveat (ASTM A1071) | Standard warns accelerated exposures are not intended to model every natural environment directly | ASTM A1071/A1071M-11(2023), active as of 2026-02 | Bar-coating decisions need media-specific confirmation beyond one chamber result. | [S48] |
| N42 bar-face remanence anisotropy signal | One 2024 study reports Jr about 1.24 T parallel to c-axis vs about 0.18 T perpendicular | Materials Today Communications, DOI 10.1016/j.mtcomm.2024.108857 | Magnetization-direction ambiguity can invalidate bar-force assumptions even when grade labels match. | [S50] |
| N42 machining brittle-transition depth (single-study) | Scratch tests report anisotropic ductile-brittle transition around 250.8 to 271.2 nm | Journal of Manufacturing Processes, published 2023-05-26 | Thin-edge bars need explicit chamfer, tooling, and handling controls before pilot approval. | [S49] |
| ASTM A1101 commercial anisotropic NdFeB envelope | Br 1.08-1.5 T; HcJ 875 to >2785 kA/m | ASTM A1101-23 scope page, active status checked 2026-02-25 | Long-rectangular bars can share grade labels but still differ in usable margin; RFQ ranking must include geometry- and method-normalized demag evidence. | [S51] |
| Open-circuit dipole-moment test context (IEC 60404-14) | Measures magnetic dipole moment by withdrawal/rotation methods in open magnetic circuit; J can be derived from j/V | IEC 60404-14:2002 (stability date 2029) page accessed 2026-02-25 | Dipole-moment pass results are useful for screening lots, but they should not replace geometry-specific load-line checks for long bars. | [S52] |
| Coating thickness baseline method for magnetic substrates | ISO 2178 (edition 3) defines non-destructive thickness measurement for non-magnetic coatings on magnetic base metals | ISO 2178 publication 2016, confirmed 2021 (accessed 2026-02-25) | Long rectangular bars should pair fast lot-level thickness checks with local edge verification methods before coating approval. | [S53] |
| Adhesion-test decision rule for plated/coated surfaces | ASTM B571 states when multiple adhesion tests are run, failure of any one is unsatisfactory | ASTM B571-23 active status page, last updated 2023-11-03 | For long bars, one passing adhesion method is not enough; release criteria should require all selected adhesion checks to pass. | [S55] |
Note: Grade suffix windows shown here are supplier planning conventions. Final qualification always depends on measured magnetic curves, thermal reserve checks, and application-specific validation.
Evidence refresh timestamp for this section: 2026-02-25.
Share your duty profile, shipment lane, and channel assumptions. We will return an RFQ-ready action list with fallback triggers.
3.5) Policy and compliance trigger matrix (neodymium route)
This section adds time-bound regulatory and market triggers that materially change NdFeB procurement decisions for EU-facing and globally exposed programs.
| Trigger | What changed | Timing | Sourcing impact | Minimum action | Source ref |
|---|---|---|---|---|---|
| EU strategic benchmark gate (CRMA Article 5) | EU defines 2030 targets: >=10% extraction, >=40% processing, >=25% recycling, and <=65% single-country dependency. | Regulation in force since 2024-05-23; benchmark horizon is 2030. | EU-bound programs need upstream origin transparency and backup processing lanes earlier in the RFQ cycle. | Request country-of-processing disclosure and contingency sources before price-only negotiations. | [S12] |
| Permanent-magnet label and digital data carrier (CRMA Article 28) | Products containing permanent magnets in covered categories must carry recycler-readable labels and a data carrier. | Delegated act due by 2026-11-24; obligations apply two years after delegated act enters into force. | Packaging and traceability workflows may need redesign if label/data fields are not planned upfront. | Insert label-readiness clauses in supplier agreements and reserve packaging change budget before SOP. | [S13] |
| Recycled-content statement for magnets (CRMA Article 29) | For products with >0.2 kg permanent magnets, recycled-content share for Nd, Dy, Pr, Tb and related elements must be disclosed. | Applies from 2027-05-24 or two years after delegated methodology act, whichever is later. | Quotes without elemental recycled-content accounting can become non-comparable for EU programs. | Add recycled-content traceability fields to RFQ templates and require method disclosure with each quote revision. | [S13] |
| 2025 export-control disruption window | IEA reports licensing restrictions and approval bottlenecks after China export-control tightening in 2025. | Controls announced 2025-04 and extended by 2025-10; approvals remained constrained through 2025-11. | Single-lane NdFeB sourcing can face abrupt lead-time shocks even when nominal capacity exists. | Define trigger-based switch rules (lead time, surcharge, and element exposure) before final supplier award. | [S15][S16] |
| Corrosion test comparability gate | ISO 9227 and IEC 60068-2-11 define controlled salt-mist methods, but they remain comparative screening tools rather than direct field-life predictors. | ISO 9227 published 2022-08; IEC 60068-2-11 updated 2021-06-17; ASTM B117 current revision 2026-01-19. | Quote claims based only on fog-test hours can overstate lifecycle confidence across real media and duty cycles. | Require combined corrosion + thermal-cycle validation criteria in RFQ instead of accepting stand-alone salt-spray hours. | [S10][S17][S18] |
| U.S. air-carriage magnetized-material gate | FAA PackSafe and 49 CFR 173.21(d) align on the aircraft carriage limit of >0.00525 gauss at 4.5 m from any package surface. | FAA page last updated 2023-03-15; eCFR current to 2026-03-19. | High-strength packages can require shielding redesign or route changes even after technical material fit is approved. | Add package-field measurement records to logistics release checklists before air-freight booking. | [S19] |
| U.S. consumer loose-magnet safety gate | 16 CFR part 1262 defines hazardous consumer magnet products by small-part fit and flux index threshold; CPSC attributes major injury burden to this category. | Effective since 2022-10-21; current text accessed 2026-02-19. | Consumer-facing SKUs can fail compliance even when engineering pull-force targets are met. | Screen product scope and flux-index risk before tooling and packaging lock for consumer channels. | [S20][S21] |
| Pending item | Current status | Impact | Minimum action | Source ref |
|---|---|---|---|---|
| CRMA Article 28 magnet-label implementation template | Pending delegated act text (deadline 2026-11-24). As of 2026-02-18, no reliable public final label template is available. | Teams may under-scope packaging, serialization, or data-carrier changes if they wait for late-stage interpretation. | Track Official Journal updates monthly and require suppliers to provide draft label/data payload mapping in advance. | [S13] |
| CRMA Article 29 recycled-content calculation method | Delegated methodology act is due by 2026-05-24; as of 2026-02-18, no reliable public finalized method text is available. | Supplier recycled-content declarations may use inconsistent assumptions, reducing quote comparability. | Ask each supplier for current method assumptions and third-party verification path until EU method is finalized. | [S13] |
| Part-level Dy/Tb intensity for specific commercial grades | No reliable public open dataset; supplier formulas are typically confidential and program-specific. | Element-specific price and export-license exposure can remain hidden until late quote revisions. | Use NDA-backed composition range disclosure and element-indexed surcharge clauses before committing long-horizon POs. | [S15] |
| Carrier-specific acceptance workflow for magnetized packages | No single reliable public cross-carrier template; regulatory thresholds are clear but acceptance workflows vary by route and operator. | Programs can hit late booking friction even after in-house technical and compliance reviews pass. | Collect route-specific carrier checklists and sample package-field evidence before ramp milestones. | [S19] |
Pending labels use explicit status wording when no reliable public implementation text is available as of 2026-02-25.
4) Methodology
The method combines technical feasibility and sourcing execution in one path so output can directly drive next actions.
Step 1 - Convert max and peak temperatures into planning duty
For this neodymium magnets route, the tool adjusts both max operating and peak temperatures, then applies an 8C planning guard band on sustained duty.
Step 2 - Gate against thermal class and flux demand
Planning duty maps to N/AH planning windows while requested flux density screens for sintered, bonded, or fallback routes.
Step 3 - Add coating and validation burden
Corrosion exposure determines coating stack and required validation evidence before RFQ lock.
Step 4 - Produce action path with confidence
The output reports confidence, risk rows, and next actions so teams can move directly into RFQ or fallback planning.
Step 5 - Validate long-bar geometry, magnetization, and coating controls together
For long rectangular routes, the workflow adds prism-demag assumptions, orientation/polarity-map checks, and paired coating thickness + adhesion gates so release decisions are not made from grade labels alone.
5) Data sources and evidence trail
Every key conclusion maps to a source and date marker so reviewers can validate or challenge assumptions quickly.
| Ref | Source | Signal used on this page | Date marker |
|---|---|---|---|
| S1 | USGS MCS 2026 - Rare Earths chapter | Reports U.S. REO concentrate output (51,000 t, USD 240M) and import shift (+169% volume; value USD 165M vs USD 168M in 2024). | Published 2026-02 |
| S2 | USGS MCS 2026 - Heavy Rare Earths chapter | Shows U.S. net import reliance at 100% in 2025 and documents 2025 export-control timeline affecting heavy rare earths. | Published 2026-02 |
| S3 | USGS Mineral Commodity Summaries 2026 (foreword) | States world rare-earth production estimate reached 390,000 tons in 2025. | Manuscript approved 2026-02-06 |
| S4 | IEA Global Critical Minerals Outlook 2025 | Rare-earth demand rises 50%-60% by 2040 in STEPS; China around 80% refining share in 2035; N-1 coverage for graphite + rare earths only 35%-40%. | Published 2025 |
| S5 | DOE Critical Materials Assessment 2023 | Executive summary states Nd, Pr, Dy, Tb used in EV motor and wind generator magnets continue to be critical. | Published 2023-07-31 |
| S6 | IEC 60404-5:2015 | Defines measurement methods for magnetic flux density, polarization, field strength, demagnetization curve, and recoil line for permanent magnets. | Publication date 2015-04-16 |
| S7 | IEC 60404-8-1:2023 | Specifies minimum magnetic-property values and dimensional tolerances for magnetically hard materials, including updated REFeB grades. | Publication date 2023-09-20 |
| S8 | IEC 60404-18:2025 | Defines open-circuit superconducting-magnet methods (SCM-VSM and SCM-extraction) and self-demagnetizing-field corrections. | Publication date 2025-02-20 |
| S9 | IEC TR 62518:2009 | Details flux-loss behavior of Nd-Fe-B and SmCo sintered magnets from 50C to 200C for up to 1000 h; explicitly excludes corrosion-coupled stability modeling. | Publication date 2009-03-17 |
| S10 | ASTM B117-26 | Defines salt-spray apparatus as a controlled comparative test and warns that stand-alone correlation to natural environment is seldom reliable. | Last updated 2026-01-19 |
| S11 | Review paper on bonded NdFeB (Journal of Alloys and Compounds 2025) | Notes isotropic bonded NdFeB is often <=16 MGOe while anisotropic bonded routes can approach ~25 MGOe. | Published 2025-07-15 |
| S12 | Regulation (EU) 2024/1252 (CRMA), Article 5 | Sets 2030 EU benchmarks: >=10% extraction, >=40% processing, >=25% recycling, and <=65% single-country dependency at each strategic stage. | Entered into force 2024-05-23 |
| S13 | Regulation (EU) 2024/1252 (CRMA), Articles 28-29 | Defines permanent-magnet labeling/data-carrier obligations and recycled-content statement requirements for Nd, Dy, Pr, Tb and related elements. | Entered into force 2024-05-23 |
| S14 | USGS MCS 2026 - Rare Earths chapter | Reports U.S. 2025 net import reliance at about 67%, consumption at 27,000 t REO, China import share averaging 71% (2021-2024), and NdPr oxide rising from $55/kg to $69/kg in 2025. | Published 2026-02 |
| S15 | USGS MCS 2026 - Heavy Rare Earths chapter | Documents 2025 export-control timeline for seven medium/heavy rare-earth items; terbium oxide increased from $812/kg to $1,010/kg while dysprosium oxide declined from $257/kg to $239/kg. | Published 2026-02 |
| S16 | IEA commentary: China’s export restrictions and strategic responses | Notes roughly 58,000 t Chinese permanent-magnet exports in 2024 and reports 2025 licensing disruptions affecting downstream inventories. | Published 2025-12-04 |
| S17 | ISO 9227:2022 Corrosion tests in artificial atmospheres | Defines NSS/AASS/CASS test methods and warns that salt-spray performance does not translate directly into corrosion behavior in other environments. | Published 2022-08 |
| S18 | IEC 60068-2-11:2021 Environmental testing - Test Ka | Provides an electrotechnical salt-mist test protocol used for comparative corrosion qualification and test reproducibility. | Published 2021-06-17 |
| S19 | FAA PackSafe magnets page + 49 CFR 173.21(d) | States that any package or magnet above 0.00525 gauss at 4.5 m (15 feet) from any package surface cannot fly and points to the codified DOT rule. | FAA page last updated 2023-03-15; accessed 2026-03-22 |
| S20 | eCFR 16 CFR part 1262 - Safety standard for magnets | Defines hazard criteria using small-part fit and flux index >=50 kG2 mm2, with an effective date of 2022-10-21. | Current text (last amended 2023-09-20), accessed 2026-02-19 |
| S21 | CPSC final-rule release for magnet safety | Reports estimated 26,600 emergency-department visits (2010-2021) and seven deaths linked to high-powered magnet ingestion incidents. | Published 2022-09-22 |
| S22 | IEA data: Rare earth elements supply, demand, diversification and policy support | Shows 2024 STEPS values of 91 kt demand, 27 kt secondary supply, and top-three concentration of 86% (mining) and 97% (refining). | Updated 2025-05-21 |
| S46 | Aharoni (J. Appl. Phys. 83(6)): Demagnetizing factors for rectangular ferromagnetic prisms | Provides closed-form equations for demagnetizing factors of rectangular prisms, enabling geometry-specific internal-field estimation for bar magnets. | Published 1998-03-15 |
| S47 | ASTM A977/A977M-07(2020) test-method scope page | Defines permanent-magnet test-method scope ranges (Hci and Br) and notes that convenience specimen geometries are not always representative of final parts. | Approved 2020-06-01; active status checked 2026-02-24 |
| S48 | ASTM A1071/A1071M-11(2023) corrosion-test scope page | Covers corrosion evaluation of sintered rare-earth permanent magnets and warns that accelerated tests are not intended to replicate all natural environments directly. | Approved 2023-12-27; active status checked 2026-02-24 |
| S49 | Journal of Manufacturing Processes (2023): anisotropic ductile-brittle transition in sintered N42 magnets | Reports anisotropic scratch/machining behavior with ductile-brittle transition depths around 250.8 to 271.2 nm, indicating edge-processing sensitivity. | Published 2023-05-26 |
| S50 | Materials Today Communications (2024): anisotropic microstructure effects in NdFeB bars | Shows strong remanence anisotropy in one N42 sample set (Jr about 1.24 T parallel to c-axis vs about 0.18 T perpendicular), reinforcing magnetization-direction controls. | Published 2024 |
| S51 | ASTM A1101-23 scope page (anisotropic NdFeB specification) | Publishes broad commercial anisotropic NdFeB property envelope (Br 1.08-1.5 T; HcJ 875 to >2785 kA/m), reinforcing that grade labels need method- and geometry-normalized comparison. | Active standard page accessed 2026-02-25 |
| S52 | IEC 60404-14:2002 (methods for dipole moment measurement of permanent magnet materials) | Defines withdrawal and rotational methods to measure magnetic dipole moment in open magnetic circuits and allows deriving polarization J from j/V. | Publication date 2002-06-27; stability date 2029; accessed 2026-02-25 |
| S53 | ISO 2178:2016 (non-destructive coating thickness by magnetic method) | Defines magnetic-method thickness measurement for non-magnetic coatings on magnetic base metals, suitable for routine lot-level coating checks. | Published 2016; confirmed 2021; page accessed 2026-02-25 |
| S54 | ISO 1463:2021 (microscopical measurement of coating thickness) | Defines cross-section microscopical method for local coating thickness determination, useful when edge/corner coverage must be verified. | Published 2021-06; page accessed 2026-02-25 |
| S55 | ASTM B571-23 scope page (qualitative adhesion testing) | Defines qualitative adhesion test methods for metallic coatings and states that if multiple tests are used, failure of any one means the coating is unsatisfactory. | Last updated 2023-11-03; active status checked 2026-02-25 |
Long rectangular neodymium magnets stage1b refs [S12]-[S22] plus [S46]-[S55] refreshed on 2026-02-25.
6) Concept boundaries and applicability rules
These boundaries are used to prevent over-interpretation of catalog labels and to define where additional evidence is mandatory.
| Boundary | Meaning | Use when | Do not use when | Source ref |
|---|---|---|---|---|
| BHmax headline is not assembly force | Energy-product labels compare material potential, not guaranteed pull force in your magnetic circuit. | Use BHmax as first-pass screening with geometry and load-line assumptions declared. | Do not rank suppliers by BHmax alone when measurement method or working point is undisclosed. | [S6][S7][S8] |
| Grade suffix is a planning shortcut | N/M/H/SH/UH/EH/AH ranges are commonly used in commerce but are not a standalone release criterion. | Use suffix classes for early lane gating before detailed BH-curve and demag checks. | Do not treat suffix labels as universal guarantees across vendors without material test disclosure. | [S6][S7] |
| Salt spray is comparative, not life prediction | Salt-fog testing helps compare coating options in controlled chambers. | Use as a screening gate with replication and clear acceptance criteria. | Do not map salt-spray hours directly to field-life commitments without corroborating long-term exposure data. | [S10] |
| High-temperature NdFeB can raise heavy-RE exposure | Programs near EH/AH lanes can become more sensitive to Dy/Tb availability and export controls. | Trigger dual-lane sourcing and fallback windows before RFQ lock when adjusted peak duty is high. | Do not assume global supply expansion alone removes element-specific licensing or concentration risks. | [S2][S4][S5] |
| Thermal stability data has defined scope | Published stability studies include specific time/temperature windows and may exclude corrosion-coupled behavior. | Use the tested windows (for example 50C to 200C, up to 1000 h) as boundary references only. | Do not extrapolate beyond reported conditions without additional testing for corrosion, duty cycling, and geometry effects. | [S9] |
| Air-shipment eligibility is package-level | Air transport screening uses measured package field at distance, not grade labels or nominal BHmax claims. | Apply before booking aircraft lanes for strong assemblies, kits, or mixed shipments. | Do not assume a magnet is flyable because the material passes engineering performance targets. | [S19] |
| Consumer magnet safety scope is conditional | U.S. 16 CFR part 1262 addresses consumer products containing hazardous loose magnets defined by size and flux index. | Use when end products can release accessible loose magnets in consumer channels. | Do not overgeneralize as a universal industrial exemption; verify product scope and exemptions first. | [S20][S21] |
| Bar geometry needs prism-specific demag assumptions | Rectangular bars do not share one universal demagnetizing factor; internal field reserve changes with aspect ratio and circuit context. | Use prism-specific demag checks when validating magnetization direction, load-line margin, and fallback grade decisions. | Do not approximate long, thin, or asymmetric bars with generic shape factors when supplier curves omit geometry assumptions. | [S46][S47] |
| Magnetization direction is a release-critical field | Anisotropic NdFeB bars can show large remanence differences when measured parallel versus perpendicular to the aligned c-axis. | Use explicit direction arrows and polarity-map fields in drawings, sample records, and incoming-QC checks. | Do not treat grade name alone as proof that sample and mass production share the same magnetization orientation. | [S50] |
| Accelerated corrosion and machining evidence has scope limits | Corrosion and scratch/grinding tests support comparative screening, but they do not provide universal life predictions for every edge profile or media cycle. | Use combined test plans (media + thermal + edge-condition controls) before approving bar-magnet coating and handling work instructions. | Do not convert a single chamber or scratch result into blanket warranty claims without application-specific replication. | [S48][S49] |
| Spec-envelope compliance is not force-equivalence proof | ASTM A1101 defines a broad anisotropic NdFeB property envelope, and long-bar orientation effects can still drive large output differences inside that envelope. | Use standard-envelope ranges as screening context before comparing suppliers for the same long-rectangular geometry. | Do not treat grade name or envelope-range compliance as proof that two long bars are interchangeable in your magnetic circuit. | [S51][S50] |
| Open-circuit dipole tests are screening, not final release | IEC 60404-14 dipole-moment methods run in open magnetic circuits and are useful for lot screening, but final release still needs in-circuit demag evidence. | Use dipole-moment methods for quick incoming checks and trend monitoring across lots. | Do not replace geometry-specific demag/load-line qualification with dipole-only pass/fail criteria for long bars. | [S52][S47] |
| Long-edge coating release needs thickness + adhesion evidence | ISO 2178 supports non-destructive thickness checks, ISO 1463 supports local cross-section thickness checks, and ASTM B571 defines multi-method adhesion failure logic. | Use paired thickness and adhesion checks before approving long rectangular bars for humid or washdown duty. | Do not sign off coating reliability from a single flat-surface thickness value or one successful adhesion test. | [S53][S54][S55] |
7) Material comparison and tradeoffs
Compare material routes using reproducible dimensions instead of marketing-only descriptors.
| Decision dimension | Sintered NdFeB | Bonded NdFeB | SmCo | Comment | Source ref |
|---|---|---|---|---|---|
| Typical magnetic energy density window | 28-53 MGOe | <=16 MGOe (isotropic), up to ~25 MGOe (anisotropic) | 20-33 MGOe | Values are orientation windows from cited source sets; geometry and working point still shift usable output. | [S11] |
| Planning temperature ceiling | Commercial planning classes often run through AH around 220C (verify by curve and load-line) | Typically lower than sintered due to polymer binder constraints | Used as high-temperature fallback; IEC TR 62518 discusses elevated-temperature stability behavior | Use adjusted peak temperature, not ambient. Final limit must come from vendor curves under your duty profile. | [S9] |
| Shape freedom and manufacturing | Strong but brittle; machining tolerance management is critical | Higher shape freedom for complex and thin-wall geometries | Brittle ceramic-like behavior; machining control required | Shape complexity can justify bonded routes even when peak BHmax is lower. | [S11] |
| Corrosion baseline | Coating usually required (Ni-Cu-Ni, epoxy, or equivalent) | Binder contributes baseline protection but media compatibility must still be verified | Better inherent corrosion behavior in many environments | ASTM B117 / IEC 60068-2-11 are gate checks, not direct life models. | [S10] |
| Supply concentration exposure (2035 view) | High for Nd/Pr, and potentially Dy/Tb in high-temperature coercivity lanes | Still tied to rare-earth feedstock plus binder/process dependencies | Different critical-material exposure profile (includes cobalt) | IEA N-1 analysis shows concentration shock can leave only 35%-40% coverage for rare-earth linked chains. | [S4] |
| Measurement comparability baseline | Require demag curve + recoil line under disclosed method | Request the same measurement family and working-point disclosure | Normalize by same method before ranking across vendors | IEC 60404-5 and IEC 60404-18 describe measurement methods; IEC 60404-8-1 defines minimum property specifications. | [S6][S7][S8] |
| Best-fit program conditions | General high-flux motors, sensors, compact electromechanics | Complex geometry, high-volume molding, lower peak flux density demands | Very high-temperature or severe thermal-cycle duty | Always close loop with demag, corrosion, and thermal evidence before release. | [S5][S9] |
| Logistics and consumer-compliance friction | High-field packages can breach air-carriage thresholds; loose consumer magnet formats need explicit safety screening. | Lower energy density can reduce some package-field pressure, but product-level safety checks still apply. | No automatic exemption; package-field and end-use safety scope must still be verified. | Inference from [S11][S19][S20]: compliance is tested at package/product level, not guaranteed by material family alone. | [S11][S19][S20] |
| Rectangular-bar demag sensitivity | Internal field margin depends on bar dimensions and permeance, so demagnetizing-factor assumptions can change usable flux despite identical grade labels. | Can ease geometry constraints for thin or complex bars, but lower energy density usually requires larger magnetic volume. | Useful high-temperature fallback, yet rectangular demag and circuit geometry still govern operating point. | Use [S46][S47] to keep rectangular-prism method assumptions explicit in RFQ comparisons. | [S46][S47] |
| Magnetization-direction control in anisotropic bars | Direction relative to easy axis materially changes remanence and force output; drawing ambiguity can invalidate sample-to-production transfer. | Often more isotropic, which can ease orientation sensitivity but does not recover sintered-level energy density. | Also anisotropic; direction must still be controlled and documented in part drawings. | Single-study signal from [S50]: one N42 dataset reported Jr about 1.24 T parallel vs about 0.18 T perpendicular. | [S50] |
| Edge integrity and machining burden for bars | Thin edges and post-machining routes can trigger brittle microcracks/chipping if tooling/chamfer plans are not controlled. | Near-net-shape molding can reduce grinding burden for some geometries at the cost of lower peak magnetic output. | Brittle behavior remains a machining and handling concern in many geometries. | Use [S49] for machining-risk framing and [S48] for corrosion-test scope boundaries before life claims. | [S49][S48] |
| Long-edge coating control and acceptance logic | Needs paired coverage checks: fast lot-level thickness screening plus local edge/corner verification and multi-method adhesion pass criteria. | Binder can reduce plating dependence in some routes, but local defect and media compatibility checks are still required. | Intrinsic corrosion behavior may improve, yet coating and adhesion verification remains application-dependent. | Use [S53][S54][S55] together; a single coating-thickness number is not sufficient for long-edge release confidence. | [S53][S54][S55] |
| Spec-envelope claims vs orientation-sensitive force transfer | A1101 envelope spans wide Br/HcJ ranges, and bar orientation effects can still create large output gaps under the same nominal grade. | More isotropic behavior can lower orientation sensitivity, but peak output is usually below sintered bars. | Orientation and magnetic-circuit assumptions still drive usable force even when thermal margin improves. | Counterexample framing from [S51][S50]: standard-envelope compliance does not guarantee equivalent long-bar force output. | [S51][S50] |
| Dipole-moment lot checks vs in-circuit demag confidence | Open-circuit dipole tests help lot screening, but long-rectangular release still depends on geometry-specific demag/load-line validation. | Same split applies: lot-level dipole checks can support QC but cannot replace circuit-level validation. | Material change does not remove the need to distinguish screening tests from in-circuit performance proof. | Use [S52] with [S47] to separate screening convenience from final application acceptance. | [S52][S47] |
8) Risk matrix and mitigation
Misuse risk, cost risk, and scenario mismatch risk are shown together so the team can sequence mitigation actions.
| Risk | Probability | Impact | Mitigation |
|---|---|---|---|
| Thermal misclassification versus real hotspot duty | Low | Medium | Recalculate adjusted operating + peak duty with measured cycle data and confirm class with demag-curve checks before PO. |
| Coating-lifecycle mismatch under real media exposure | Medium | Medium | Map media profile to explicit corrosion + thermal-cycle tests and define pass/fail criteria up front. |
| Supplier data non-comparability (test method mismatch) | Medium | Medium | Require method disclosure (IEC 60404 family) and normalize working points before ranking quotes. |
| High-temperature lane heavy-rare-earth exposure | Medium | Medium | When adjusted duty approaches EH/AH lanes, request Dy/Tb exposure disclosure and define export-control fallback triggers before award. |
| Supply concentration shock during launch window | High | Medium | Maintain contingency lane and pre-define switch triggers for temperature, lead time, and cost tolerance. |
9) Open evidence gaps and minimum closure path
Where public evidence is incomplete, this page does not force a hard conclusion. Each gap includes a minimal executable closure action.
| Evidence gap | Current status | Decision impact | Minimum closure action | Source ref |
|---|---|---|---|---|
| Cross-supplier suffix mapping to guaranteed demag margin | No single public standard mapping N/M/H/SH/UH/EH/AH suffix labels to guaranteed in-application demag reserve. | Quote comparisons can look equivalent while actual thermal headroom differs by method and working point. | Request vendor-specific BH curves, recoil data, and temperature conditions before release decisions. | [S6][S7] |
| Salt-spray hours to field-life conversion | No reliable universal conversion model in open standards; ASTM B117 warns stand-alone correlation is seldom robust. | Warranty and lifecycle assumptions can be overstated if fog-hour data is treated as direct service-life evidence. | Pair chamber tests with application-specific thermal/media cycling and clearly documented acceptance criteria. | [S10] |
| Corrosion-coupled high-temperature flux-loss dataset for each coating stack | Public IEC thermal-stability report excludes corrosion-coupled behavior modeling for full lifecycle prediction. | High-temperature and aggressive-media programs may underestimate long-term drift and reserve loss. | Run combined thermal + corrosion + load-line validation for each candidate stack before final PO. | [S9] |
| Program-specific heavy-rare-earth exposure breakdown | Public macro data confirms concentration risk, but part-level Dy/Tb intensity is typically supplier-confidential. | Lead-time and export-license risk can remain hidden until late sourcing stages. | Add material disclosure checkpoints and contingency triggers in RFQ templates. | [S2][S4] |
| Package-field prediction from CAD/BHmax alone | No reliable universal public model converts part-level grade and geometry into certified package-field outcomes at transport distance. | Teams can discover non-compliant shipping configurations late, after packaging design and launch schedules are locked. | Run measured package-field checks on shipment-ready units and reserve shielding iteration time before booking. | [S19] |
| Public edge-coverage to field-life transfer model for long rectangular bars | No reliable public dataset links ISO 2178 lot-level thickness values and ISO 1463 local edge measurements to quantified field-life outcomes for specific NdFeB coating stacks. | Teams can close coating review on nominal thickness values but still miss edge-driven corrosion failures in service. | Define project-specific edge-thickness and adhesion criteria, then validate against application media/thermal cycles before mass release. | [S53][S54][S55] |
| Lot-level orientation-spread benchmark for long bars | No reliable public cross-supplier benchmark quantifies acceptable orientation-spread limits by bar aspect ratio while keeping in-circuit force variation inside one unified tolerance model. | Incoming lots can pass generic grade checks but still introduce force drift across elongated arrays. | Set orientation and polarity-map acceptance windows in RFQ drawings and require lot-level magnetic mapping evidence before supplier lock. | [S51][S50] |
Labeling policy: when reliable public data is insufficient, status is marked as "no reliable public data" and converted into a validation task instead of a forced conclusion.
10) Scenario examples
Each scenario includes assumptions, tool outcome, and minimum executable next step.
Assumptions
Peak 145C, humid but sealed enclosure, target flux 820 mT, annual volume 120k.
Outcome
Fit: SH/UH sintered NdFeB lane with epoxy-over-Ni coating and standard validation depth.
Next step
Proceed with NdFeB primary lane and run salt-mist + thermal cycle validation before pilot freeze.
Assumptions
Peak 198C, coolant splash exposure, target flux 960 mT, annual volume 45k, automotive compliance.
Outcome
Conditional: EH/AH planning window with tighter demag reserve checks and contingency lane recommendation.
Next step
Open parallel SmCo contingency lane until demag and corrosion evidence both pass program criteria.
Assumptions
Peak 238C, high corrosion medium, target flux 680 mT, low annual volume, medical-grade audit controls.
Outcome
Not fit: adjusted thermal duty exceeds AH planning envelope for NdFeB.
Next step
Prioritize SmCo fallback or architecture redesign before spending cycle budget on high-risk NdFeB trials.
Assumptions
Peak 172C, humid industrial floor, target flux 910 mT, annual volume 80k, products destined for EU compliance lanes.
Outcome
Conditional: NdFeB is technically feasible but procurement path is gated by CRMA traceability and recycled-content disclosure readiness.
Next step
Hold dual-source lane and lock supplier traceability payload (origin + recycled content assumptions) before line-freeze milestone.
Assumptions
120 x 20 x 5 mm long bars, peak 136C, humid + alkaline cleaning duty, target flux 860 mT, and force spread requirement within one production lot.
Outcome
Conditional: technical lane is feasible, but release confidence depends on orientation-mapping controls plus edge coating thickness and adhesion closure.
Next step
Freeze prism-demag assumptions in RFQ, require lot-level orientation/polarity map evidence, and approve coating only after ISO 2178 + ISO 1463 + ASTM B571 criteria pass.
11) FAQ (decision-focused)
Questions are grouped by decision intent so teams can move from explanation to execution.
12) Next action
Share your duty profile and we will return a material-lane recommendation with grade window, coating strategy, validation checklist, and RFQ normalization notes.
Product Gallery

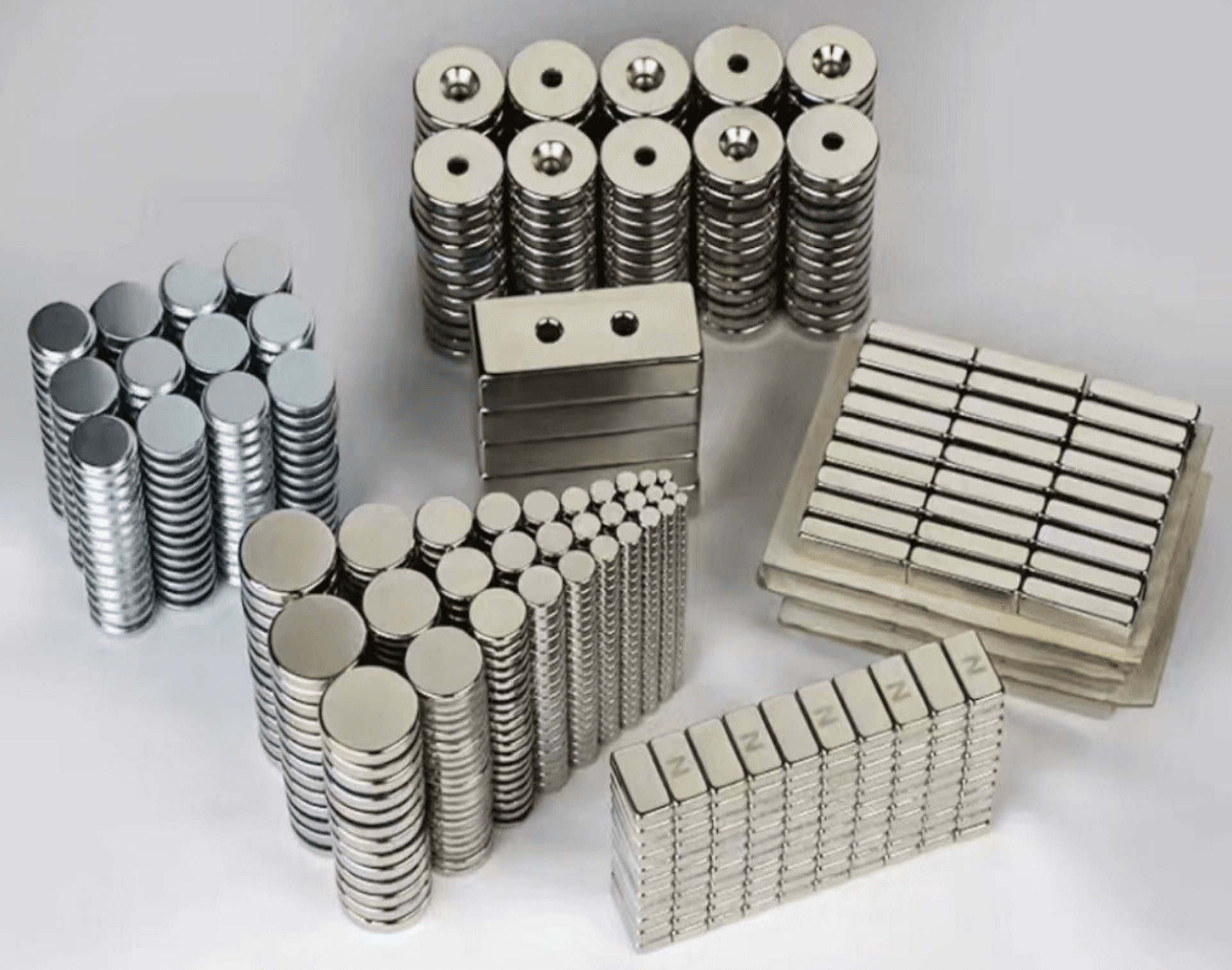

Rectangular block magnets
Specifications
| Primary geometry lane | Long rectangular sintered NdFeB bars for actuator rails, fixture arrays, and directional-flux modules |
| Aspect-ratio planning boundary | High length-to-thickness ratios require demag-sensitive checks plus edge-integrity controls before release |
| Magnetization planning | Through-thickness or long-axis magnetization selected by flux path, orientation tolerance, and assembly constraints |
| Typical grade planning | N35-N52 baseline with SH/UH fallback lanes when adjusted duty temperature or coercivity margin tightens |
| Tool output payload | Fit band, confidence score, boundary note, and result-specific next actions for quote normalization |
| RFQ release gate | Supplier award requires method-normalized geometry, thermal, corrosion, and magnetization evidence |
Need a quote-ready specification review?
Share your drawing, grade target, coating, and quantity. We align supplier feasibility before full RFQ submission.
Reference Guides
Procurement-ready guides covering grades, coatings, QC, and RFQ prep.
Coatings & Corrosion
Corrosion protection for rare earth magnets
Environment-based guidance for selecting coatings and corrosion controls.
Manufacturing & Quality
Inspection and testing for NdFeB magnets
How to define inspection scope, measurement methods, and acceptable criteria.
Sourcing & Logistics
Magnet storage and handling safety
Storage, handling, and packaging guidance to avoid chipping, demagnetization, and injury.
Case studies
HVAC - Linear actuator assemblies
Block Magnets for HVAC Linear Actuator Production Line
Scaling from 500 to 10,000 pcs/month of N35 block magnets for HVAC damper actuators while reducing unit cost by 18%.
Subsea / Marine - Magnetic coupling for ROV thrusters
Magnetic Assembly for Underwater ROV Thruster Coupling
Custom magnetic coupling assembly using N42 NdFeB ring magnets with epoxy coating for subsea ROV thruster applications.
Quote Calculator
Estimate lead time and prepare a precise RFQ.
Buyer feedback
Recent RFQ and sourcing coordination highlights.
The RFQ response included grade and coating options with clear lead times.
Marcus Reed
Procurement Manager - EV Motor OEM
Drawing review was fast and the quote matched our tolerance targets.
Ana Soto
Sourcing Lead - Industrial Automation
Inspection data and material declarations were available when requested.
Ravi Menon
Quality Engineer - Appliance Supplier
Trusted by buyer segments
OEM and industrial teams sourcing NdFeB and SmCo magnets.
Request a Quote
RFQ checklist
- Dimensions and shape (include drawing if possible).
- Grade and operating temperature range.
- Coating or surface treatment requirements.
- Quantity, target price, and delivery schedule.
- Tolerance, magnetization direction, and application notes.
Spec sheet downloads
Reference assets to speed up RFQ prep. Confirm specs before ordering.
NdFeB spec sheet (reference)
Grades, coatings, and RFQ checklist for NdFeB magnets.
SmCo spec sheet (reference)
High-temperature SmCo summary and RFQ checklist.
Ferrite spec sheet (reference)
Cost-optimized ferrite basics and RFQ checklist.
Alnico spec sheet (reference)
High-temperature Alnico grades and RFQ checklist.
Bonded NdFeB spec sheet (reference)
Bonded NdFeB process notes and RFQ checklist.
Flexible rubber magnet spec sheet (reference)
Flexible magnet tape basics and RFQ checklist.
Magnetic assembly spec sheet (reference)
Pot magnet assembly fundamentals and RFQ checklist.
Trust & Compliance
Certifications and QC checkpoints aligned to industrial procurement.
ISO 9001
Quality management system
RoHS
Restricted substances compliance
REACH
SVHC compliance on request
Factory Capability
- Custom shapes and grades per drawing
- Tolerances confirmed by supplier QC
- Coating options: Ni-Cu-Ni, Zinc, Epoxy
QC Process
- Raw material verification and grade checks
- Dimensional inspection to critical tolerances
- Surface and coating integrity inspection
Get a Quote
Send your drawing, grade, coating, and quantity. We coordinate a supplier quote and follow up with confirmed specs.
Product data is sourced from partner suppliers and confirmed per order.
Related Pages
Neodymium Bar Magnets: Tool-First Fit and Sourcing Decision Report
Product
Neodymium Bar Magnets
Product
Neodymium Magnets
Category hub
Neodymium Block Magnets
Product
N52 Neodymium Magnets: Tool-First Fit and Sourcing Decision Page
Product
Neodymium Magnets: Fit Tool and Procurement Decision Report
Product
NdFeB Magnet Grades: Selector Tool and Evidence Report
Educational
NdFeB Magnet Supplier Sourcing for OEM Buyers
Sourcing
