Thermal boundary
SH 150C and UH 180C are hard grade gates
DOE Table 2 links each suffix to max operating temperature; crossing into EH/AH means higher heavy-rare-earth loading. [R4]
Hybrid motor magnets application page
Motor Magnets Fit Tool: Instant Result + Engineering Decision Report
Run a motor magnets fit check in under one minute, then use the report layer to lock grade class, coating lane, and RFQ next steps with fewer redesign loops.
Published on 2026/02/18
Last updated 2026/02/18
Motor Magnets Fit Tool
Input thermal window, launch pressure, and reliability priority to get a DOE-table-aligned grade lane with risk-aware next actions.
Tool output
Run the tool to receive a motor magnets recommendation lane
You will get fit status, grade window, coating lane, and an RFQ-ready validation checklist.
Key conclusions for motor magnets sourcing
Use these source-backed signals to decide whether NdFeB remains primary and when ferrite/SmCo contingency lanes should be opened before RFQ freeze.
Mine-stage concentration
China produced 270,000 t of 390,000 t REO in 2025 (~69%)
USGS 2026 still shows concentrated upstream feedstock, so dual-lane sourcing remains the practical baseline for schedule-sensitive programs. [R7]
Import reliance shift
U.S. net import reliance for rare-earth compounds/metals rose to 67% in 2025 (53% in 2024)
A one-year jump in import reliance means procurement teams should not treat 2024 sourcing conditions as stable assumptions. [R7]
NdPr price rebound
NdPr oxide averaged $69/kg in 2025 vs $55/kg in 2024
USGS reports an approximately 25% year-on-year increase, so quote buffers need commodity-index clauses. [R7]
Efficiency compliance ceiling
In EU in-scope motors, IE3 is minimum and IE4 applies to 75-200 kW from 2023-07
When ferrite substitution lowers efficiency margin, teams can trigger requalification and launch-delay risk. [R9]
Test-method limitation
Salt spray hours alone are weak life predictors
A 26-system field study found poor correlation between standard accelerated corrosion tests and C5 field creep outcomes. [R6]
Best-fit teams
- Motor programs with defined thermal window and stable rotor geometry
- Programs that need a quote-ready grade lane plus coating criteria in one pass
- Teams balancing torque density against corrosion and launch timing risk
Not suitable without extra engineering work
- Concept-stage motors with unknown duty cycle, hotspot, or assembly envelope
- Use cases above 220C peak hotspot without confirmed high-temp material fallback
- Programs requiring full electromagnetic redesign instead of sourcing optimization
Program snapshot and decision numbers
These values anchor sourcing decisions with explicit time stamps and make late-stage motor-magnet failure modes auditable.
| Metric | Current signal | Reference | Why it matters |
|---|---|---|---|
| Global EV pull-through [R1] | Electric car sales exceeded 17 million in 2024, and IEA expects them to surpass 20 million in 2025 (>25% share of new cars). | IEA Global EV Outlook 2025 (published 2025-04) | Motor-magnet demand remains structurally strong and increases procurement competition for high-grade PM materials. |
| Rare-earth mine concentration [R7] | World rare-earth mine output stayed at 390,000 t REO in 2025; China contributed 270,000 t (~69%). | USGS MCS 2026 (2025 data) | Upstream concentration supports keeping contingency material lanes active for schedule-sensitive motor-magnet programs. |
| US net import reliance shift [R7] | Net import reliance for rare-earth compounds/metals moved from 53% (2024) to 67% (2025). | USGS MCS 2026 | Programs using last-year assumptions can underestimate sourcing risk and miss early contingency actions. |
| NdPr oxide price movement [R7] | Average NdPr oxide price rose from $55/kg in 2024 to $69/kg in 2025. | USGS MCS 2026 | Price-linked clauses and staged commitments reduce requote loops in long RFQ cycles. |
| Export-control timeline signal [R7] | China announced controls on selected medium/heavy rare-earth items in 2025-04, expanded scope in 2025-10, then suspended the October controls for one year in 2025-11. | USGS MCS 2026 | Trade-policy scope can change inside one sourcing cycle; compliance review cadence must match shipment milestones. |
| NdFeB value-chain concentration [R4] | DOE reports China share rising from 58% in rare-earth mining to 92% in magnet production. | DOE deep dive (2022 baseline) | Downstream concentration increases the risk of quote volatility at the magnet stage, not only at ore stage. |
| US magnet import mix [R5] | In 2021, US sintered NdFeB import value share was 75% China, 9% Japan, 5% Philippines, 4% Germany. | BIS Section 232 report, 2023-02 | Single-country exposure is still significant; dual-source qualification should start before RFQ freeze. |
Policy and compliance trigger board
Use this table to track non-technical triggers that can invalidate an otherwise acceptable magnet quote.
| Trigger | Latest verified signal | Date | Execution impact |
|---|---|---|---|
| Strategic-material concentration benchmark [R8] | EU Critical Raw Materials Act sets a 2030 benchmark: no more than 65% of annual strategic raw-material consumption at any relevant processing stage from a single third country. | Regulation entered into force 2024-05 | For EU-bound programs, keep at least one qualified contingency lane and archive origin/process evidence at RFQ stage. |
| Motor efficiency compliance floor [R9] | EU ecodesign requires IE3 minimum for in-scope 0.75-1000 kW motors (since 2021-07), with IE4 minimum for in-scope 75-200 kW motors (since 2023-07). | Applies in current market surveillance cycle | Any ferrite-driven topology or geometry change should trigger efficiency recheck before design freeze. |
| Trade-control scope volatility [R7] | USGS records 2025 control actions and revisions on selected medium/heavy rare-earth items, including a temporary suspension of the October expansion in 2025-11. | USGS MCS 2026 | Refresh HTS/license checks at PO, pre-shipment, and customs-clearance milestones, not only at first quote. |
| SmCo fallback mineral exposure [R10] | USGS estimates Congo provided 73% of world cobalt mine output in 2025 and announced quota changes in 2025-10 after a temporary export suspension. | USGS MCS 2026 | Treat SmCo fallback as a risk transfer, then quantify cost/timeline exposure before replacing the primary NdFeB lane. |
When public data is policy-level but not SKU-level, this page marks the boundary and recommends a validation-first procurement gate instead of forced conclusions.
Methodology used by the hybrid page
The calculator and report share one auditable chain: operating envelope -> suffix mapping -> validation gate -> RFQ action.
1) Normalize motor operating envelope
Continuous and peak temperatures are combined with cooling and environment penalties into a risk-adjusted hotspot input.
2) Map to suffix lane with traceable thresholds
The tool maps adjusted hotspot to NdFeB suffix limits (SH/UH/EH/AH) and associated Dy/Nd+Pr content bands from DOE Table 2. [R4]
3) Separate screening from life prediction
Corrosion tests are treated as screening gates because accelerated salt/cyclic tests do not reliably predict all field outcomes. [R6]
4) Produce action-ready output
Output combines grade lane, mineral-exposure signal, policy checkpoints, and next actions so teams can issue primary plus contingency RFQs with explicit assumptions.
Evidence layer and data references
Core claims are tied to primary datasets, government assessments, and peer-reviewed studies so teams can audit assumptions before committing sourcing decisions.
| Source | Signal used in this page | Date |
|---|---|---|
| [R1] IEA Global EV Outlook 2025 | Confirms >17 million EV sales in 2024 and projects >20 million in 2025 with >25% new-car share. | 2025-04 |
| [R7] USGS Mineral Commodity Summaries 2026 - Rare Earths | Provides 2025 mine output, import-reliance shift, NdPr price movement, and 2025 trade-control timeline updates. | 2026-01 |
| [R8] EUR-Lex Regulation (EU) 2024/1252 (CRMA) | Defines 2030 strategic-material benchmarks including the 65% single-third-country concentration cap at each relevant processing stage. | Entered into force 2024-05 |
| [R9] European Commission Ecodesign requirements for electric motors | Summarizes mandatory IE3/IE4 minimum efficiency levels and enforcement timelines used for compliance-boundary checks. | Requirements in force (updated guidance 2024) |
| [R10] USGS Mineral Commodity Summaries 2026 - Cobalt | Estimates Congo at 73% of world cobalt mine production in 2025 and records 2025 quota/export-policy shifts relevant to SmCo fallback risk. | 2026-01 |
| [R4] U.S. DOE Rare Earth Permanent Magnets Deep Dive | Provides NdFeB suffix temperature/Dy mapping (Table 2), demand projections (Tables 9-10), and value-chain concentration metrics used in this page. | 2022-02 |
| [R5] BIS Section 232 NdFeB report (Federal Register) | Documents U.S. reliance on imported sintered NdFeB and 2021 import-share split by country, plus composition and demand findings. | Published 2023-02 (report completed 2022-06) |
| [R6] Materials Today Communications (Knudsen et al., open access) | Compares 26 coating systems and reports poor correlation between standard accelerated corrosion tests and field corrosion creep. | 2022-06 |
Research refresh completed on 2026-02-18 with 2025 trade/policy updates. Where evidence is incomplete, this page explicitly marks pending confirmation or no reliable public data and defaults to validation-first actions.
Material comparison for motor-magnet programs
Comparison is structured for sourcing decisions with explicit evidence tags and uncertainty flags.
| Criteria | NdFeB | Ferrite | SmCo |
|---|---|---|---|
| Temperature grade boundary [R4] | Suffix mapping: 80/100/120/150/180/200/220C (N to AH). | Pending confirmation: no public ferrite grade dataset matches DOE Table 2 methodology, and supplier methods differ materially. | DOE states SmCo is more demag-resistant at high temperature, especially where weight is less critical. |
| Heavy-rare-earth exposure [R4][R5] | Dy content rises from <0.5 wt% (no suffix) to 8.5%-11% (EH/AH); Nd+Pr can drop to 19%-21.5%. | No Nd/Pr/Dy in the magnet body. | Shifts away from Nd/Dy but introduces cobalt exposure. |
| Energy density and packaging [R4] | Report examples show 35-52 MGOe range, which supports compact rotor packaging in many motor-magnet programs. | DOE substitute discussion places ferrite below NdFeB and motivates 10-25 MGOe gap-magnet R&D. | Higher-temp stability can justify use in hot zones, but below about 180C NdFeB usually wins on size/weight efficiency. |
| Supply concentration exposure [R7][R10][R4][R5] | China concentration appears at mine stage (69% REO output in 2025) and magnet stage (92% share in DOE baseline). | Lower rare-earth exposure, but redesign and tooling lead times can delay deployment in compact motor packages. | Cobalt supply remains concentrated: Congo accounted for an estimated 73% of world mine output in 2025. |
| Regulatory and compliance boundary [R8][R9] | Usually supports compact high-efficiency layouts, but still needs lane-specific efficiency verification in regulated markets. | Pending confirmation: no reliable public universal conversion factor maps ferrite substitution to IE3/IE4 pass probability across motor topologies. | May preserve thermal margin, yet compliance testing scope can still expand when electromagnetic redesign changes efficiency maps. |
| Corrosion and validation method [R6] | Coating lane remains critical; accelerated tests should be treated as screening gates, not direct life prediction. | Pending confirmation: no unified public field-correlation dataset is available for ferrite coating life in this motor context. | High-temperature robustness does not remove fluid compatibility or galvanic-coupling checks in mixed-material assemblies. |
Temperature grade boundary [R4]
If sustained hotspot exceeds 180C, NdFeB usually moves from single-lane to contingency-required planning.
Heavy-rare-earth exposure [R4][R5]
Material switching changes which mineral bottleneck you carry; it does not eliminate concentration risk.
Energy density and packaging [R4]
Ferrite may reduce material cost but can force larger magnetic volume and geometry changes.
Supply concentration exposure [R7][R10][R4][R5]
A defensible RFQ compares geography, material chemistry, and validation scope, not only first-pass unit price.
Regulatory and compliance boundary [R8][R9]
For EU-bound programs, magnet chemistry changes can trigger efficiency and documentation rechecks before shipment.
Corrosion and validation method [R6]
Use field-representative duty cycles before final PO for every lane, including contingency material paths.
Use boundaries and failure limits
These boundaries use DOE suffix thresholds for sintered NdFeB and show where screening remains valid versus where custom validation is mandatory.
| Condition | Preferred lane | Use with caution | Avoid without redesign |
|---|---|---|---|
| Risk-adjusted peak <=150C (SH or below) | NdFeB SH lane with standard incoming magnetic checks and coating qualification | Cost-first purchasing can still reduce real coercivity margin | Skipping lot-level Br/Hcj verification |
| Risk-adjusted peak 151C-180C (UH lane) | NdFeB UH primary lane plus one contingency quote before RFQ freeze | Single-source RFQ under <8-week launch pressure | Material lock without overload thermal bench data |
| Risk-adjusted peak 181C-220C (EH/AH lane) | EH or AH with explicit Dy-content disclosure and SmCo feasibility check | Procurement ranking that ignores mineral concentration exposure | PO before demag, corrosion, and supply-lane evidence closes |
| Risk-adjusted peak >220C (beyond AH) | SmCo-first engineering lane | NdFeB special route without full material and duty-cycle data | Production commitment from calculator output alone |
| EU-bound in-scope efficiency program (R9 applies) | Lock magnet lane with documented efficiency rerun before certification freeze | Ferrite substitution without confirming IE3/IE4 compliance margin | Assuming chemistry swap is compliance-neutral across all rated-power lanes |
Risk-adjusted peak <=150C (SH or below)
This is the most stable NdFeB lane, but it is still not a warranty of field life. [R4]
Risk-adjusted peak 151C-180C (UH lane)
Dy loading increases in this lane; sourcing and thermal risks start to couple. [R4]
Risk-adjusted peak 181C-220C (EH/AH lane)
This lane can carry 8.5%-11% Dy and requires stronger contingency planning. [R4]
Risk-adjusted peak >220C (beyond AH)
For this zone, public evidence is insufficient for blanket NdFeB recommendations. Pending confirmation and no reliable public data.
EU-bound in-scope efficiency program (R9 applies)
Where Regulation (EU) 2019/1781 scope applies, material changes can become compliance and timeline risk multipliers. [R9]
Known unknowns that require explicit confirmation
Rotor lamination + adhesive compatibility under oil/coolant
Status: Pending confirmation: no reliable public unified threshold is available, and outcomes depend heavily on adhesive system details.
Next step: Run compatibility test matrix with selected coating stack.
Transient overload hotspot gradient in real duty profile
Status: Pending confirmation: reproducible measured data is often missing during early RFQ stages.
Next step: Capture thermal map in overload cycle before final grade lock.
Salt-spray hours to field-life conversion
Status: No reliable public conversion model: standard accelerated tests show weak correlation with field life across multiple scenarios [R6].
Next step: Define field-representative acceptance tests with supplier before pilot lot.
HS-code and license scope changes during shipment window
Status: Pending confirmation: 2025 policy reversals show control scope can change inside one sourcing cycle, and SKU-level interpretation is often jurisdiction-specific [R7].
Next step: Run trade-compliance review at PO, pre-shipment, and customs-clearance checkpoints.
Risk matrix and mitigation playbook
The matrix links probability and impact to specific mitigation steps so teams can act before quotation freeze.
| Risk | Probability | Impact | Mitigation |
|---|---|---|---|
| Thermal demagnetization near EH/AH boundary | High when risk-adjusted peak >180C | High: torque drop and field returns | Use DOE suffix thresholds as a gate, then verify coercivity margin at nominal plus overload duty before freeze. [R4] |
| Single-country concentration in NdFeB chain | Medium to High for single-source sourcing | High: price spikes, lead-time shock, requote loops | Keep primary and contingency RFQ lanes live, and request origin and midstream processing disclosure. [R7][R4][R5] |
| Trade-control scope shifts mid-program | Medium when sourcing lane depends on restricted medium/heavy rare-earth routes | High: shipment holds, urgent requalification, customs delays | Review HTS/license exposure at each logistics milestone and pre-negotiate contingency logistics paths. [R7] |
| Coating qualification over-relies on accelerated tests | Medium when decision is based on salt-spray hours alone | High: corrosion-driven reliability failure | Treat accelerated tests as screening; include field-representative duty/chemistry checks before PO. [R6] |
| SmCo fallback shifts risk to cobalt concentration | Medium when fallback triggers at >220C lanes | Medium to High: cost and supply volatility transfer | Quantify cobalt exposure and timeline impact before final material swap decision. [R10] |
Scenario examples (premise -> process -> outcome)
Scenario A: 48V BLDC fan motor, humid enclosure
Premise: Peak 165C, efficiency target 89%, launch in 9 weeks, humidity exposure expected.
Process: Tool returns conditional fit, UH grade window, epoxy-priority coating lane, and dual RFQ recommendation.
Outcome: Team secures backup quote early and avoids late corrosion-driven redesign.
Scenario B: Compact actuator motor, oil mist contact
Premise: Peak 178C with aggressive packaging constraints and high duty cycle.
Process: Tool flags narrow thermal headroom and elevates validation plus coating risk class.
Outcome: Program keeps NdFeB primary lane but sets SmCo contingency for schedule protection.
Scenario C: High-temp pump drive motor
Premise: Peak 228C and lifetime-first priority in continuous-duty operation.
Process: Tool marks not-fit for standard NdFeB lane and moves to SmCo-first path with custom tests.
Outcome: Avoids false confidence from room-temperature pull force and reduces field-failure risk.
Scenario D: EU-bound compressor motor with ferrite fallback
Premise: Peak 172C, launch in 7 weeks, and quote pressure pushes a ferrite substitution request.
Process: Team runs a compliance gate, checks IE3/IE4 exposure, and keeps NdFeB UH + ferrite contingency RFQs in parallel.
Outcome: Program avoids late compliance retest surprises and keeps launch path viable if one lane is disrupted.
FAQ for motor magnets sourcing decisions
Grouped by decision intent so teams can move from uncertainty to executable next steps quickly.
Tool usage and interpretation
Material and coating choices
RFQ and execution planning
Ready to turn this motor magnets result into supplier action?
Share your thermal window, coating constraints, and launch target. We can return an RFQ-ready checklist and sourcing lane recommendation aligned to this tool output.
Primary CTA supports immediate WhatsApp/email handoff; details CTA supports structured engineering follow-up.

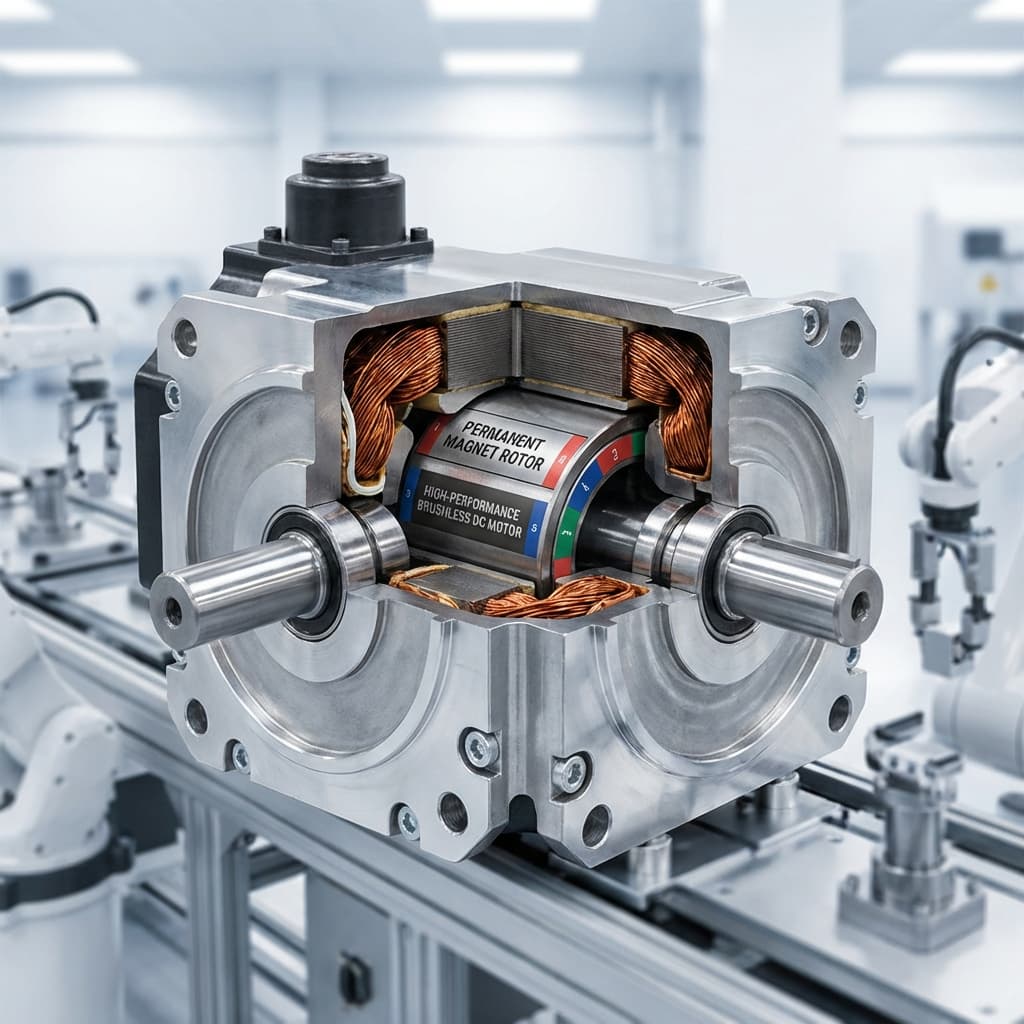

Product Gallery

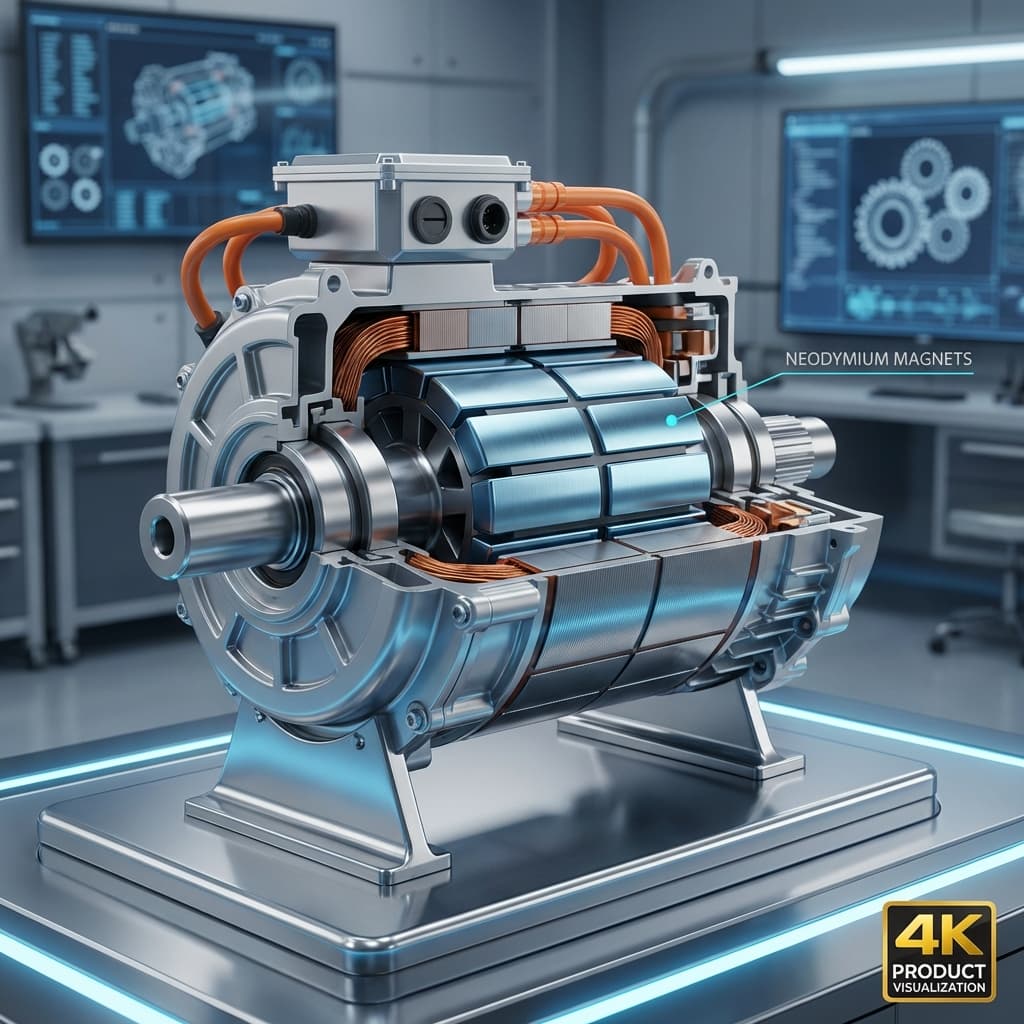

EV motor with permanent magnets
Reference Guides
Procurement-ready guides covering grades, coatings, QC, and RFQ prep.
View all resourcesCase studies
HVAC - Linear actuator assemblies
Block Magnets for HVAC Linear Actuator Production Line
Scaling from 500 to 10,000 pcs/month of N35 block magnets for HVAC damper actuators while reducing unit cost by 18%.
Subsea / Marine - Magnetic coupling for ROV thrusters
Magnetic Assembly for Underwater ROV Thruster Coupling
Custom magnetic coupling assembly using N42 NdFeB ring magnets with epoxy coating for subsea ROV thruster applications.
Buyer feedback
Recent RFQ and sourcing coordination highlights.
The RFQ response included grade and coating options with clear lead times.
Marcus Reed
Procurement Manager - EV Motor OEM
Drawing review was fast and the quote matched our tolerance targets.
Ana Soto
Sourcing Lead - Industrial Automation
Inspection data and material declarations were available when requested.
Ravi Menon
Quality Engineer - Appliance Supplier
Trusted by buyer segments
OEM and industrial teams sourcing NdFeB and SmCo magnets.
EV MotorsIndustrial AutomationRobotics SystemsMedical DevicesAppliance OEMEnergy Storage
Request a Quote
Request a Quote
Share your magnet requirements and we will respond within 24 hours.
Get a Quote
Send your drawing, grade, coating, and quantity. We coordinate a supplier quote and follow up with confirmed specs.
Product data is sourced from partner suppliers and confirmed per order.
Related Pages
Magnet Electric Motor: Tool-First Fit and Sourcing Decision Report
Application
Electric Motor Magnets: Sourcing Guide and RFQ Checklist
Application
Permanent Magnet Motors: Tool-First Fit and Decision Report
Application
Permanent Magnet Motor: Tool-First Fit and Decision Report
Application
Permanent Magnet Dc Motor
Application
Samarium Cobalt Magnets
Category
Samarium Cobalt vs Neodymium: Which Magnet Fits Your Operating Risk?
Comparison
Custom Neodymium Magnets for OEM RFQ
Sourcing
Industrial Lifting Magnets
Application
Neodymium Magnets
Category hub
